Collision Avoidance Systems
Two Event Optical Laser Kits
Model CAS-3L100
NEW Available today in Client Area Shop - Consult factory for more information!- Third output option with LED/HORN indicator for low signal strength from reflector indicates cleaning maybe required. Active range is 3-100 feet.
- Up to 100 feet Event Laser Reflective Sensing Kit for crane-to-crane separation and end stop collision avoidance.
- Slow approach and stop functions in stepped control mode.
- Class 2 visible laser for easy alignment.

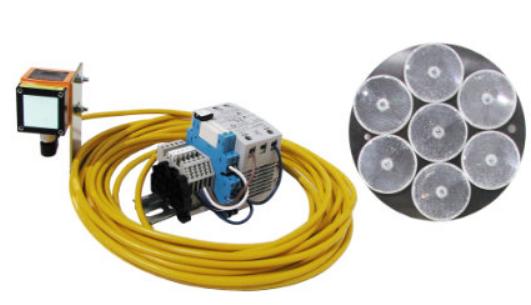

- Kit includes pre-assembled DIN mounted power pack, relays, and interface, reflector, data cable, mounting bracket, hardware, and instructions.
- N.O or N.C contact available for each event.
- Included power pack allows DC sensor to be powered with 120VAC.
Model CAS-2L100
- Two Event Laser Reflective Sensing Kits up to 100 feet for crane-to-crane separation and end stop collision avoidance.
- Slow approach and stop functions in stepped control mode.
- Class 2 visible laser for easy alignment.
- Kit includes pre-assembled DIN mounted power pack, relays and interface, reflector, data cable, mounting bracket, hardware, and instructions (25 meter data cable available).
- N.O or N.C contact available for each event.
- Included power pack allows DC sensor to be powered by 120VAC.

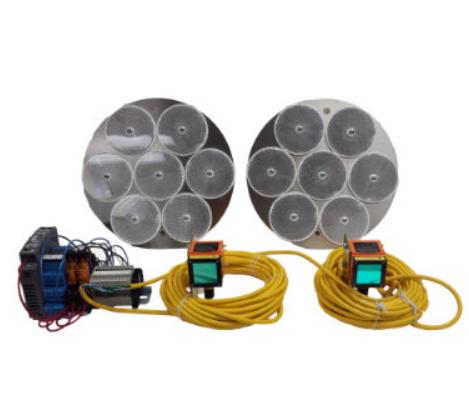

CAS-3L100 DUPLEX and CAS-2L100 DUPLEX
- Both DUPLEX models have the same features as their standard couterparts.
- Power requirements are 120VAC, however, DUPLEX kits use a single power pack to power two sensors
- Compatibility Warning: Both regular and DUPLEX versions may not work with all applications, please verify with a qualified technician DUPLEX models will work with your application and consult factory for more information.
LED Optic Sensor
Model CAS-1RA-0
- Single Event-Stop Only.
- Single Event LED Reflective Sensing Kit.
- Up to 30 foot for crane-to-crane separation and end stop collision avoidance.
- Kit includes optic sensor unit, reflector array, mounting bracket, hardware, and instructions.
- Unit can be powered by 120 VAC only (consult factory for other voltages).
- N.O or N.C contact available.
- Pre-wired SO-cable available with any length.
Collision Avoidance System Matrix
| Comparison Features | Two Event Optical Laser Kits NEW CAS-3L100 |
Two Event Optical Laser Kits CAS-2L100 |
LED Optic Sensor CAS-1RA-0 |
|---|---|---|---|
| Type | Optical Laser | Optical Laser | LED Optic Sensor |
| Range (feet) | Up to 100 feet | Up to 100 feet | Up to 30 feet |
| Events | Two events: crane-to-crane separation and end stop collision avoidance | Same as CAS-3L100 | Single event: end stop collision avoidance |
| Function | Slow approach and stop in stepped control mode | Same as CAS-3L100 | Single Event-Stop Only |
| Output option | LED/HORN indicator for low signal strength from reflector indicates cleaning may be required. Active range is 3-100 feet. | N/A | N/A |
| Laser type | Class 2 visible laser | Same as CAS-3L100 | LED (Light Emitting Diode) |
| Included components | Power pack, relays and interface, reflector, data cable, mounting bracket, hardware, instructions | Same as CAS-3L100 | Optic sensor unit, reflector array, mounting bracket, hardware, instructions |
| Contact type | N.O or N.C contact available for each event | Same as CAS-3L100 | N.O or N.C contact available |
| Power requirements | 120VAC with included power pack | 120VAC with included power pack | 120VAC only (consult factory for other voltages) |
| Cable Options | 25 meter data cable available | 25 meter data cable available | Pre-wired SO-cable available with any length |
| Additional Models | DUPLEX available | DUPLEX available | N/A |
